3 Way Stainless Steel Ball Valve Pneumatic Actuated Spring Return
Van Bi INOX 3 Thân Điều Khiển Khí Nén Có Lò Xo
High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. The spring in the actuator allows the valve to return to a rest position in the case of loss of air. Typical applications include water treatment, chemical, marine, petrochemical and general industry.
| Size(BSP) | Orifice (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| 1/4 | 8 | SR50 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 3/8 | 10 | SR50 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 1/2 | 12 | SR50 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 3/4 | 15 | SR63 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 1 | 20 | SR63 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 1 1/4 | 25 | SR75 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 1 ½ | 32 | SR88 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 2 | 43 | SR100 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 2 ½ | 55 | SR115 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
| 3 | 66 | SR125 | Vacuum (29" Hg) to 63 Bar (10 Bar Steam) | -20°C to 180°C | 6 to 8 BAR |
FEATURES
Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Spring Return Pneumatic
3 Way Brass Ball Valve Double Acting Pneumatic Actuator
Van Bi Đồng 3 Ngã Điều Khiển Khí Nén 2 Tác Động
High performance 3 way (L and T port) full bore nickel plated brass ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. Typical applications include water treatment, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.
FEATUERS
Size: 1/2" to 1 1/2" BSP
Body: Nickel Plated Brass
Seat: PTFE
Pressure: 16 BAR
Temperature: -10°C to 100°C
Actuation: Double Acting Pneumatic

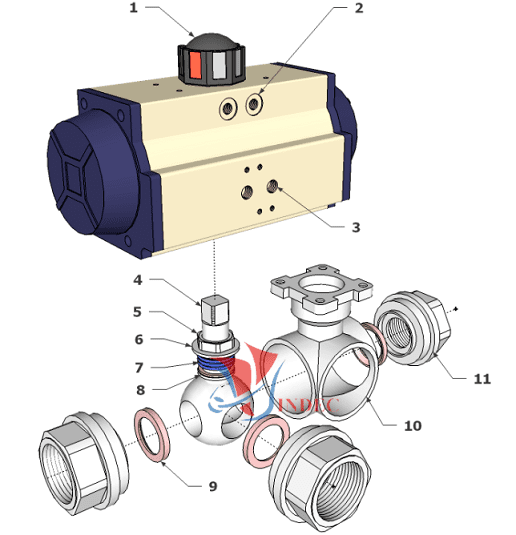

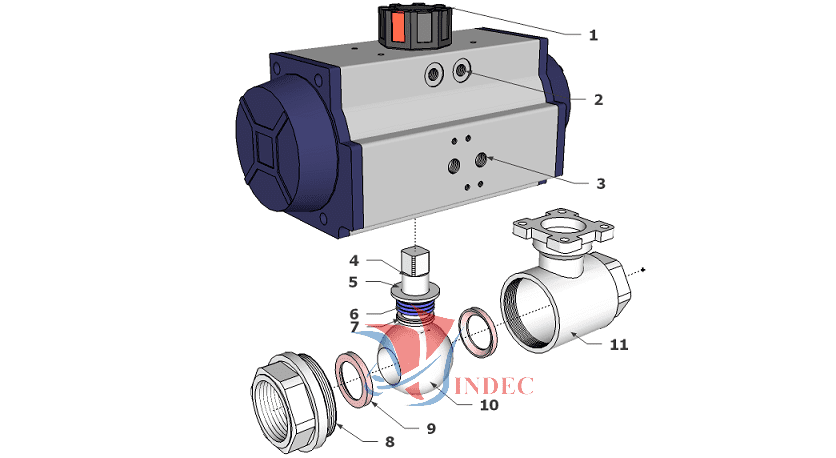

CẤU TẠO
| Item | Article | Material |
|---|---|---|
| 1 | Visual Indicator | UV Stabilised Thermoplastic |
| 2 | Adjustable Stops | Stainless Steel |
| 3 | Pressure Ports | Threaded |
| 4 | Drive | 316 Stainless Steel |
| 5 | Retainer | 316 Stainless Steel |
| 6 | Chevron Seals | Teflon |
| 7 | Backing O-ring | Viton |
| 8 | Thrust Washer | Teflon |
| 9 | Seats | Teflon |
| 10 | Body | Nickel Plated Brass |
| 11 | End Connection | Nickel Plated Brass |
3 Way Brass Ball Valve Pneumatic Actuator Spring Return
Van Bi Đồng 3 Ngã Điều Khiển Khí Nén 1 Tác Động Nối Ren
High performance 3 way (L and T port) full bore nickel plated brass ball valve with BSP threaded connections and a spring return pneumatic actuator (fail close or fail open). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. Typical applications include water treatment, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.
FEATUERS
Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Spring Return Pneumatic

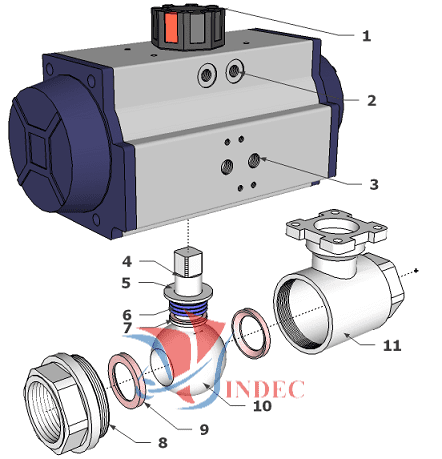

CẤU TẠO
| Item | Article | Material |
|---|---|---|
| 1 | Visual Indicator | UV Stabilised Thermoplastic |
| 2 | Adjustable Stops | Stainless Steel |
| 3 | Pressure Ports | Threaded |
| 4 | Drive | 316 Stainless Steel |
| 5 | Retainer | 316 Stainless Steel |
| 6 | Chevron Seals | Teflon |
| 7 | Backing O-ring | Viton |
| 8 | Thrust Washer | Teflon |
| 9 | Seats | Teflon |
| 10 | Body | Nickel Plated Brass |
| 11 | End Connection | Nickel Plated Brass |
3 Way Stainless Steel Ball Valve Double Acting Pneumatic Actuator
Van Bi 3 Ngã INOX Điều Khiển Khí Nén 2 Tác Động Nối Ren
High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Typical applications include water treatment, chemical, marine, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.
FEATUERS
Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
CẤU TẠO
| Item | Article | Material |
|---|---|---|
| 1 | Visual Indicator | UV Stabilised Thermoplastic |
| 2 | Adjustable Stops | Stainless Steel |
| 3 | Pressure Ports | Threaded |
| 4 | Drive | 316 Stainless Steel |
| 5 | Retainer | 316 Stainless Steel |
| 6 | Chevron Seals | Reinforced Teflon |
| 7 | Backing O-ring | Viton |
| 8 | Thrust Washer | Reinforced Teflon |
| 9 | Seats | Reinforced Teflon |
| 10 | Body | 316 Stainless Steel |
| 11 | End Connection | 316 Stainless Steel |
3 Way Stainless Steel, Pneumatic Actuator Double Acting Flanged
Van 3 Ngã Điều Khiển Khí Nén 2 Tác Động Lắp Mặt Bích
High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments. Typical applications include water treatment, chemical, marine, petrochemical and general industry.
FEATUERS
Size: 15mm to 100mm
Body: 316 Stainless Steel
Seat: RPTFE
Pressure: 20 BAR @ ambient
Temperature: -10°C to 180°C
Actuation: Double Acting Pneumatic
Port: L or T port

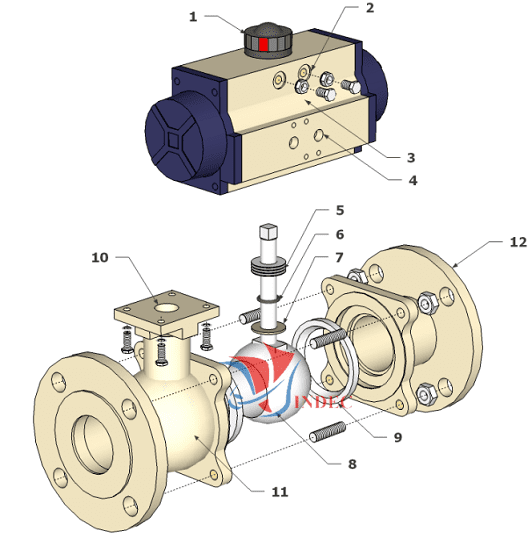

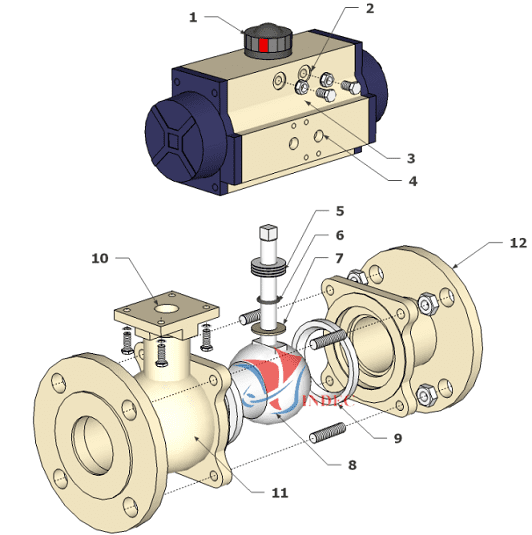

CẤU TẠO VAN 3 NGẢ
| Number | Item | Material |
|---|---|---|
| 1 | Flanged End | CF8M |
| 2 | Seat | Reinforced PTFE |
| 3 | Ball | ASTM A182 316 |
| 4 | Body | ASTM A351 CF8M |
| 5 | Shaft | ASTM A276 316 |
| 6 | Thrust Washer | SS201 |
| 7 | Chevron Packing | PTFE |
| 8 | Shaft Seal Oring | Viton |
| 9 | Belleville Washers | SS201 |
| 10 | Retaining Nut | SS304 |
| 13 | Shaft Seal | Viton |
| 14 | Cap Gasket | PTFE |
| 15 | Pneumatic Actuator | Anodized Aluminium |
| 16 | Stops | ASTM A276 316 |
| 17 | Indicator | Thermoplastic |
| 18 | Bonnet | ASTM A351 CF8M |

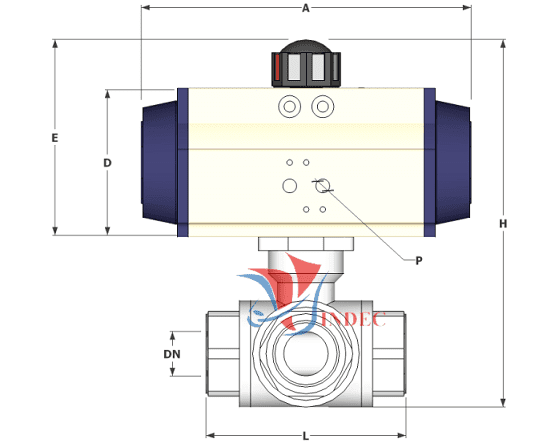

KÍCH THƯỚC VAN 3 NGẢ
| DN | Actuator | A | B | C | D | E | F | G | H | L | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | DA50 | 138 | 90 | 60.5 | 89 | 70 | 2 | 35 | 134.5 | 152 | 11 |
| 20 | DA63 | 162 | 100 | 70 | 98 | 80 | 2 | 43 | 150 | 167 | 11 |
| 25 | DA63 | 162 | 100 | 79.5 | 108 | 80 | 2 | 51 | 155 | 180 | 12 |
| 32 | DA75 | 208 | 117 | 89 | 117 | 97 | 2 | 64 | 175.5 | 190 | 13 |
| 40 | DA88 | 245 | 136 | 98.5 | 127 | 116 | 2 | 73 | 180.5 | 212 | 15 |
| 50 | DA100 | 266 | 142 | 120.5 | 152 | 122 | 2 | 92 | 212 | 230 | 16 |
| 65 | DA115 | 310 | 172 | 139.5 | 178 | 142 | 2 | 105 | 231 | 290 | 18 |
| 80 | DA125 | 340 | 184 | 152.5 | 190 | 154 | 2 | 127 | 267.25 | 310 | 19 |
| 100 | DA145 | 401 | 209 | 190.5 | 229 | 179 | 2 | 157 | 298.5 | 350 | 24 |
3 Way Stainless Steel Pneumatic Actuator Spring Return Flanged
Van Bi 3 Ngả Inox Điều Khiển Khí Nén 1 Tác Động Lắp Mặt Bích
High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments. Typical applications include water treatment, chemical, marine, petrochemical and general industry.
FEATUERS
Size: 15mm to 200mm
Body: 316 Stainless Steel
Seat: RPTFE
Pressure: 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation: Spring Return Pneumatic
Port L or T port
CẤU TẠO VAN 3 NGẢ
| Number | Item | Material |
|---|---|---|
| 1 | Flanged End | CF8M |
| 2 | Seat | Reinforced PTFE |
| 3 | Ball | ASTM A182 316 |
| 4 | Body | ASTM A351 CF8M |
| 5 | Shaft | ASTM A276 316 |
| 6 | Thrust Washer | SS201 |
| 7 | Chevron Packing | PTFE |
| 8 | Shaft Seal Oring | Viton |
| 9 | Belleville Washers | SS201 |
| 10 | Retaining Nut | SS304 |
| 13 | Shaft Seal | Viton |
| 14 | Cap Gasket | PTFE |
| 15 | Pneumatic Actuator | Anodized Aluminium |
| 16 | Stops | ASTM A276 316 |
| 17 | Indicator | Thermoplastic |
| 18 | Bonnet | ASTM A351 CF8M |
3 Way Plastic PVC Ball Valve Spring Return Pneumatic
Van Bi Nhựa PVC 3 Ngã Điều Khiển Khí Nén Có Lò Xo 1 Tác Động
3 way UV stabilised Spring Return Pneumatic PVC true union ball valve available in both L port and T port configurations. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Also features a chem lock insert In the end so the true union can be removed for service work and the ball will not leak when in the closed position. Great PVC ball valve for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Choose between Solvent Weld (ANSI Standard designed to fit Schedule 40 & 80 pipe) and BSP threaded ends (Threads conform to ISO 7.1 Sealing Threads.).
FEATUERS
Size 1/2" to 2" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Spring Return Pneumatic.
3 Way Plastic PVC Ball Valve Double Acting Pneumatic
Van Bi Nhựa PVC 3 Ngã Điều Khiển Khí Nén 2 Tác Động
3 way UV stabilised Double Acting Pneumatic PVC true union ball valve available in both L port and T port configurations. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Also features a chem lock insert In the end so the true union can be removed for service work and the ball will not leak when in the closed position. Great PVC ball valve for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Choose between Solvent Weld (ANSI Standard designed to fit Schedule 40 & 80 pipe) and BSP threaded ends (Threads conform to ISO 7.1 Sealing Threads.).
FEATUERS
Size: 1/2" to 2" BSP & Solvent Weld
Body: UV stabalised PVC
Seat: PTFE
Pressure: 10 BAR
Temperature: Ambient
Actuation: Double Acting Pneumatic
