Forged Steel Ball Valve Class 800 Threaded Ends
Van Bi Thép Rèn Class 800 Nối Ren
Robust A105 Forged Steel Class 800 Ball Valve with PTFE seats and a reduced bore. Suitable for use across Petrochemical, Steam, Mining and Industrial applications. Designed to ASME B16.34 with NPT ends to ASME B1.20.1 and tested to API 598.
FEATUERS
Size: 1/2" to 2" NPT
Body: Forged Steel
Seat: PTFE
Pressure: 130 BAR @ ambient
Actuation Lever
| Size (NPT) | Design Pressure | Media Temperature | Weight (kg) | Torque (Nm) |
|---|---|---|---|---|
| 1/2" | 13.62 MPa @ -29°C ~ 35°C | 180°C @ 1.0 MPa | 1.3 | 15 |
| 3/4" | 2.2 | 18 | ||
| 1" | 3.5 | 27 | ||
| 1-1/4" | 6.5 | 45 | ||
| 1-1/2" | 6.7 | 65 | ||
| 2" | 11 | 90 |

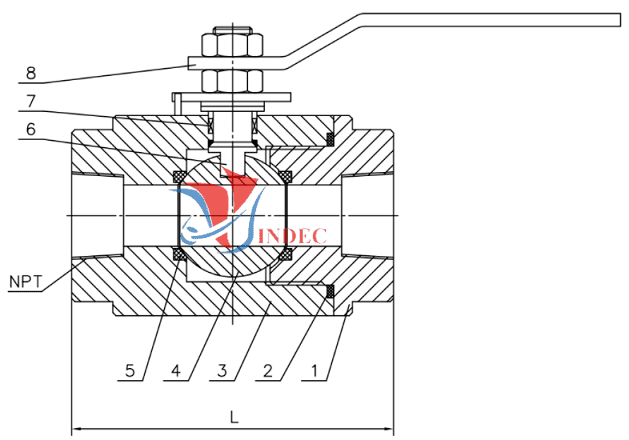

CẤU TẠO
| Number | Part Name | Material |
|---|---|---|
| 1 | Cap | ASTM A105 |
| 2 | Gasket | RPTFE |
| 3 | Body | ASTM A105 |
| 4 | Ball | ASTM A182-F304 |
| 5 | Seat | PTFE |
| 6 | Stem | ASTM A276-420 |
| 7 | Packing | RPTFE |
| 8 | Handle | SS+PVC |
