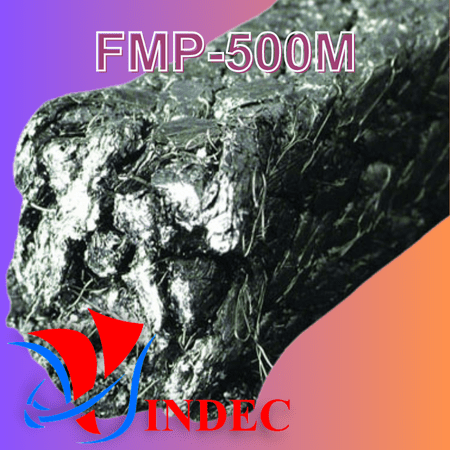

FEROLITE FMP 500M

Expanded Graphite jacketed with Inconel wire FMP 500M - Gioăng FEROLITE

Typical Applications: Valves
Service Media&conditions : Used for Superheated Steam, Hydrocarbons, Non Oxidising Liquids & Gases, Hot Ash Dyes & Chemicals, Fuel Oil & Lub oil etc. Corrosion inhibitor for moving parts
Supply Data:
Size Range : 6 x 6 to 40 x 40 mm
Form : Square
Technical Data
Material Number : FMP 500M
Type of Fibre : High purity Graphite ( 99.5 - 99.9%) + S.S.
Carrier Fibre : -
Type of Core : Graphite
Metal Insertion/Jacketing: Inconel Wire / Chrome Steel (S.S.) wire
Application Limit: -240 C to 650 C
Decomposition : 650 C
Operating Pressure (Max.) Rotating: 30 Bar
Operating Pressure (Max.) Oscillating: 150 Bar
Max Operating Pressure : 350 Bar
Temperature of Carrier Fibre  : -
pH: 0 - 14
Density (g/cm ): 1.1

Product versions:
With metal wire Insertion or Jacketing (FMP 500M) Impregnated with Special Lubricants -- To
reduce stem friction &corrosion inhibitor.

Product Approval :
- Fire Test  (API Standard 589, 2nd Edition in 6 Inch Class 300 Gate Valve)
- Fire Test  (API 607 Rev.4 in 4 inch Class 300 Gate Valve)
