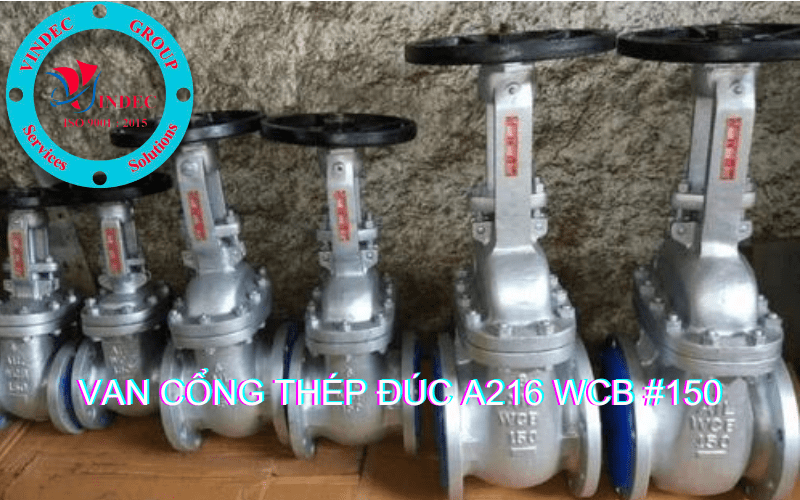

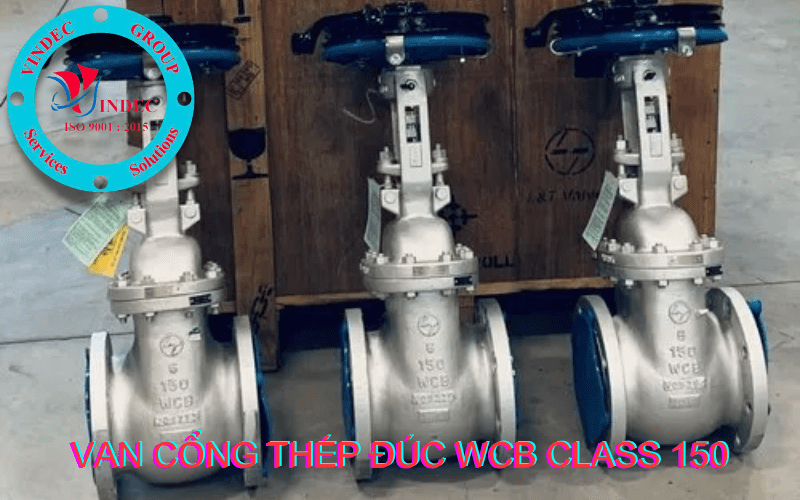

Van Cổng Thép Đúc WCB Mặt Bích ANSI Class 150

Cast Steel Gate Valve – Flanged ANSI 150

Flanged ANSI 150 RF, A216 Gr WCB, Trim 13% CR + HFS, Oustide Screw & Yoke, Bolted Bonnet, Design to API 600 Rated CL150, Temperature -29°C to 425°C.

Cast Steel Gate Valve Manufacturer Landee Supplies RF Flanged ASTM A216 Cast Steel Gate Valve, Rising Stem, 150LB, Hand Wheel, OS&Y, API 600/API 598.


Sizes: NPS 2 to NPS 48

Class: 150 to 2500

Design & manufacture: API 600, API 603, ASME B16.34

Face-to-face: ASME B16.10

End Connection: ASME B16.5 (RF & RTJ) / ASME B16.25 (BW)

Test & inspection: API 598

NACE: MR-0175, NACE MR-0103, ISO 15848, API624

Available in:

Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8,

CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20,

Monel, Inconel, Hastelloy


Key Specifications / Features
Make: approved GATE VALVE 4" dia.
Supply of Cast Steel Gate Valve.
Make: approved.
Class 150 # as per ANSI B 16.34.
Flanged End Raised Face as per ANSI B 16.5.
Service Fluid: Refined Petroleum Products (Gasoline, Diesel, Kerosene, Jet A-1, LDO and Furnace Oil).
Style: Bolted Bonnet, Bolted Gland, Solid Wedge. Renewable Seats with Stem Protector, OS&Y.
Feature: Rising Stem.
Bore Design: Regular Bore Design.
Operator: Hand Wheel.
Body: ASTM A216 Grade WCB.
Stem / Trim: 13% Cr. SS.
Seat: 13% Hard Faced Cr SS.
Bolting: ASTM A 193 Gr. B7 & A 194 Gr.2H.
Seat Ring: 13% Cr. Hard Face.
Wedge Disc: ASTM A216 Gr.WCB.
Packing Manufacturer Standard.
Design and Test API 600/API 598.
