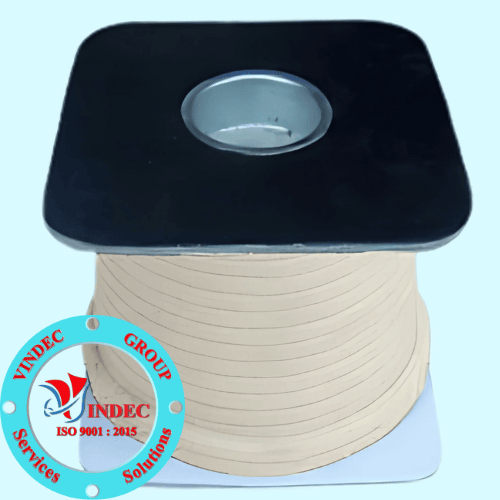

RAMIE FIBER PACKING WITH PTFE & OIL
Highest quality ramie fiber impregnated with light-colored, special PTFE and inert lubricant during square plaiting operation. It can prevent product contaminated. Low maintenance, easy-to ontrol, it is not harsh on shafts and stems. Material Flax is also available on request.
CONSTRUCTION
Item: HEROOS-P567R Ramie packing with silicon Rubber Core
Item: HEROOS-P567G Ramie Packing With Graphite & Oil Impregnation
High elastic silicon core can absorb vibration, to control leakage.
APPLICATION
For pumps, refiners, filters and valves in the brewing and beverage industry, shipbuilding and other fields. Especially resistant to abrasive media in the paper industry.
PARAMETER
| PH range | 5~11 | |
| Maximum Temperature ℃ | 130 | |
| Pressure bar | Rotating | 20 |
| Reciprocating | 20 | |
| Static | 30 | |
| Shaft speed | m/s | 10 |
| Density | 1.3g/cm3 | |
PACKAGING
In coils of 5 to 10 kg, other weight on request
