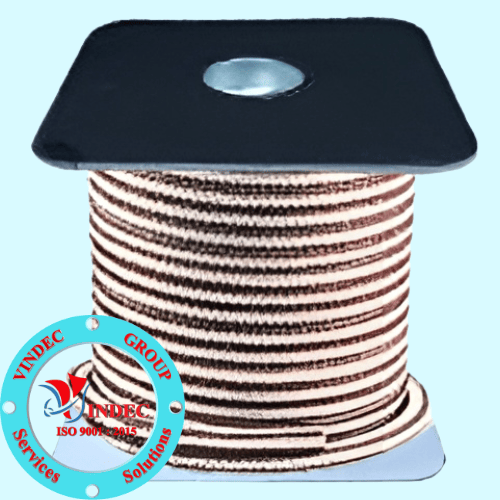

PTFE Packing with Kynol fiber corners
PTFE Packing with Kynol fiber corners It contains the advantage both PTFE and Kynol .
APPLICATION:
A high performance packing that is well suited to applications where graphite impregnation may not be acceptable. Suitable for abrasive media, and where contamination is not permitted. It has multiple uses in chemical plants and pulp and paper mills, and is regularly used in rotating and reciprocating pumps, washer journals, liquor pumps, refiners and digesters.
PARAMETER:
|
|
Rotating |
Reciprocating |
Static |
|
Pressure |
20 bar |
100 bar |
200 bar |
|
Shaft speed |
20 m/s |
1.5 m/s |
2 m/s |
|
Temperature |
－200~+260°C |
||
|
PH range |
1~13 |
||
|
Density |
appr 1.5g/cm3 |
||
PACKAGING:
in coils of 5 or 10 kg, other package on request.
PACKAGING:
in coils of 5 or 10 kg, other package on request.
PTFE PACKING WITH KYNOL FIBER CORNERS
Braided from PTFE fiber and KynolTM fiber. It contains the advantage both PTFE and kynol. It has good strength and lubricates.
APPLICATION
> Suited well where graphite impregnation not be acceptable
> For abrasive media, and where contamination is not permitted
> Chemical plants and pulp and paper mills
> Rotating and reciprocating pumps, washer journals, liquor pumps, refiners etc.
PRIME FEATURES
> Clean packing
> High pressure conditions than using pure PTFE packings
PACKAGING
in coils of 5 or 10 kg
