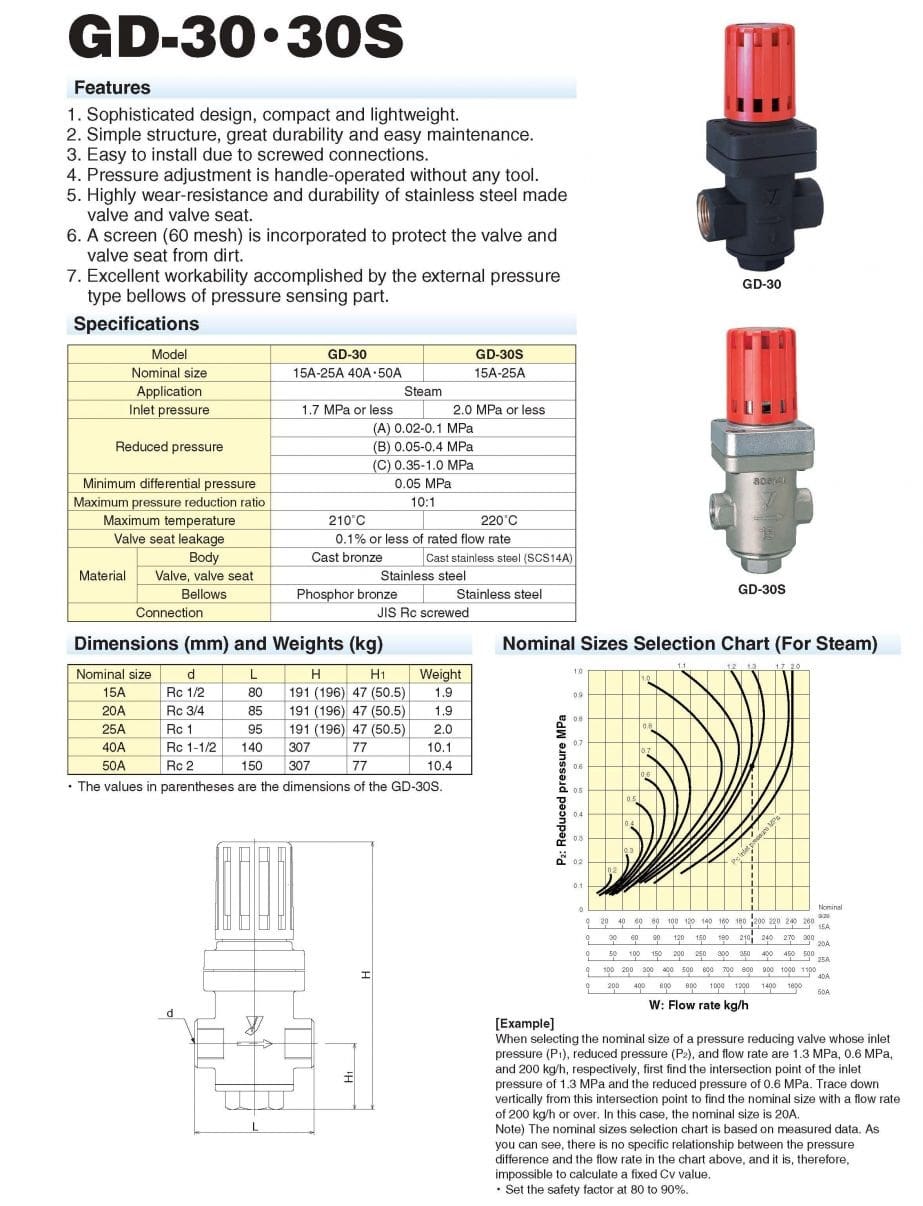

Van Giảm Áp Hơi YOSHITAKE GD-30/GD-30S
Feature: Direct-acting type / Bronze / Screwed
Type: Direct-acting type
Specifications:
Application: Steam
Inlet pressure: Max. 1.7MPa
Reduced pressure: 0.02 - 1.0MPa(*)
Connection: JIS Rc screwed
Min. differential pressure: 0.05MPa
Max. pressure reduction ratio: 10:1
Max. temperature: 210 degree(C)
Material:
Body: Bronze
Valve & seat: Stainless steel
Bellows: Phosphor bronze
Remarks
* Reduced pressure
A: 0.02-0.1 MPa
B: 0.05-0.4 MPa
C: 0.35-1.0 MPa
* Direct-acting type
* Small, compact and advanced design
* Superior performance and durability
* Easy adjustment with handle
* Integral strainer prevents dirt problem
