Van Giảm Áp GP-2000 YOSHITAKE



Van Điều Áp Hơi Nhật Bản YOSHITAKE GP-2000
Application: Steam
Inlet Pressure: 1 - 20kgf/cm2
Outlet Pressure: 1.0 - 14kgf/cm2 (Spring B)
Max Temperature: 220 deg. C
Main valve & Seat: Stainless Steel
Pilot valve & Seat:  Stainless Steel
Diaphragm:  Stainless Steel
Model:  GP-2000

Van Điều Áp Hơi Nhật Bản YOSHITAKE GP-2000

YOSHITAKE Ductile Iron Pressure Reducing Valve, JIS 20K RF Flanged Ends
Application: Steam
Inlet Pressure: 1 - 20kgf/cm2
Outlet Pressure: 1.0 - 14kgf/cm2 (Spring B)
Max Temperature: 220 deg. C
Main valve & Seat: Stainless Steel
Pilot valve & Seat:  Stainless Steel
Diaphragm:  Stainless Steel
Model:  GP-2000

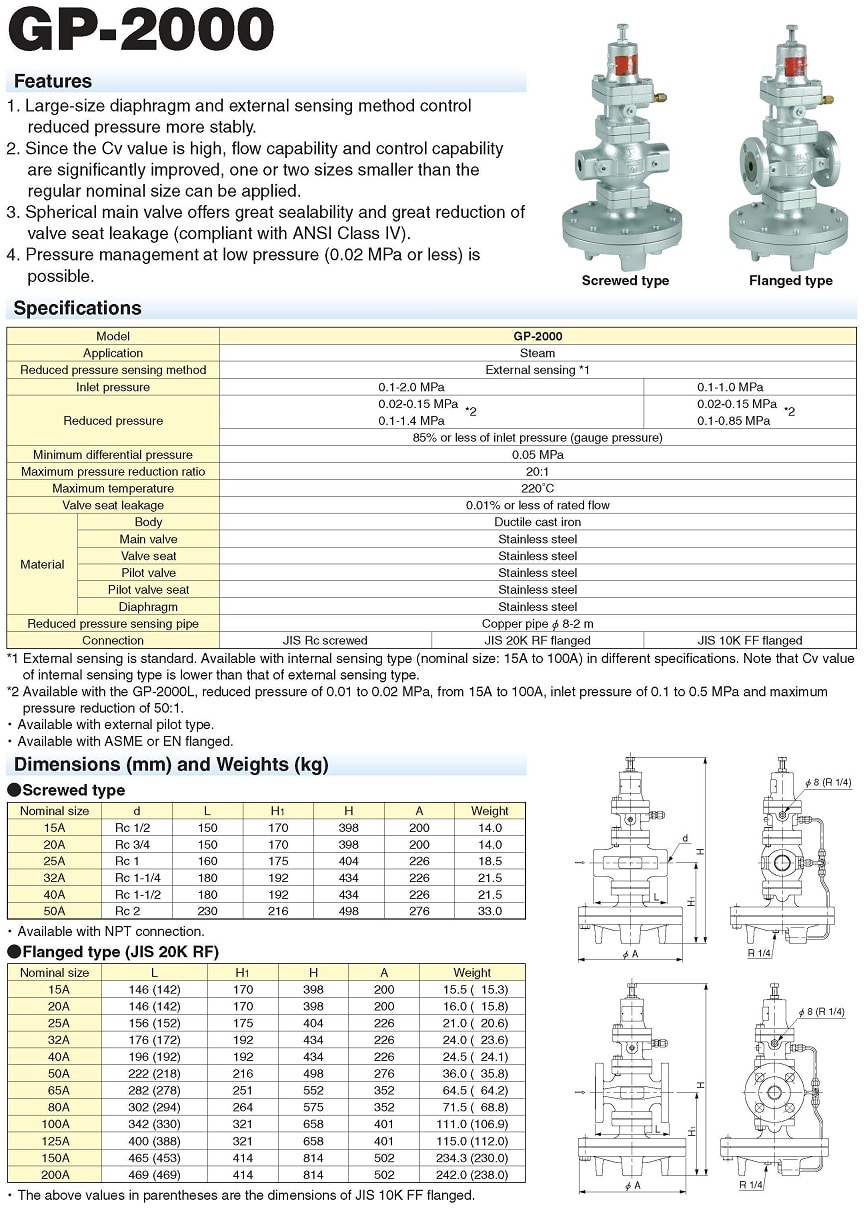

van giảm áp yoshitake gp-2000
