KITZ 300SCLS

Van Cửa Thép Xăng Dầu Class 300 KITZ 300SCLS - Van KITZ

>>>> XEM THÊM  Van Cổng INOX

KITZ CAST CARBON STEEL GATE VALVE, ANSI 300# FLANGED ENDS.
Bolted Bonnet, Outside screw & Yoke, Rising Stem
Body: Cast Steel ASTM A216 Gr. WCB
Stem: Stainless Steel A182 Gr. F6a
Disc: Stainless Steel A182 Gr. F6a (size 2" - 4")
Cast Steel ASTM A216 Gr. WCB + 13Cr (Size 5" - 12")
Body Seat Ring: Carbon Steel A106 Gr. B + HF or A105 + HF
Packing Material: Flexible Graphite
Shell wall thickness and general valve design specification: API600
Pressure-Temperature ratings: ASME B16.34

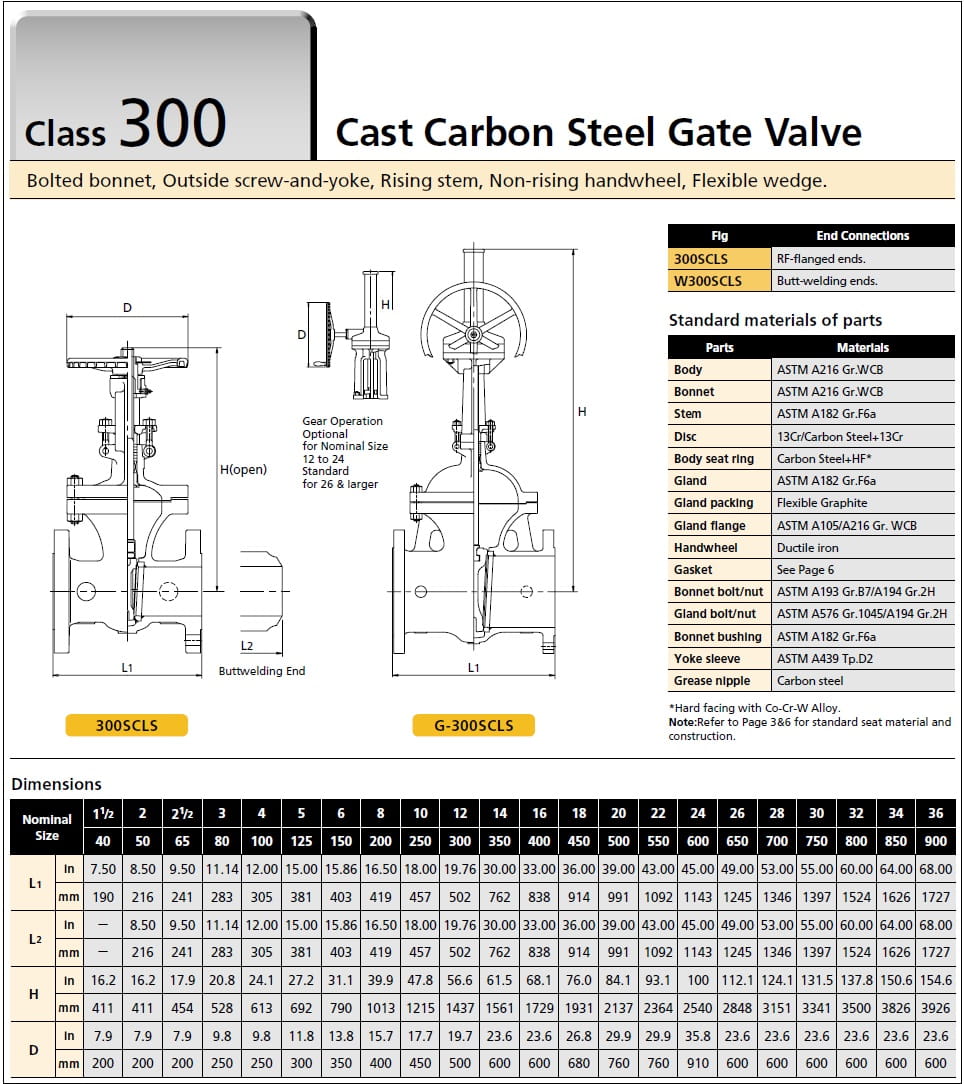

More specifications: Catalogue attached.
Model: 300SCLS

Ứng dụng: Nước, Xăng dầu, hơi nước nóng, cấp thoát nước,...
